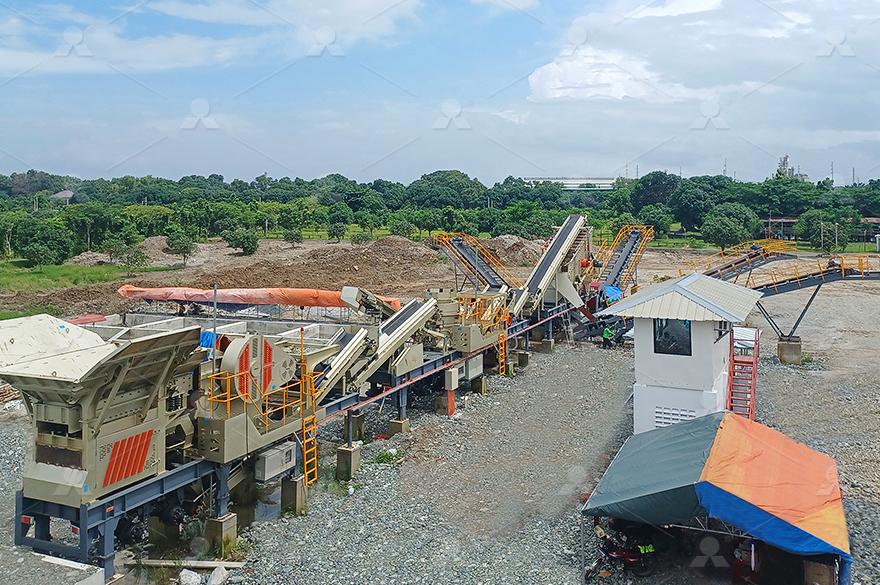

In the Philippines, the "country of a thousand islands" rich in mineral resources, a river pebble crushing production line was successfully completed and put into operation. This project was built by Liming Heavy Industry. It is the masterpiece of our company's NK series of new products entering the Philippine market. It attracted much attention once completed.

Liming Heavy Industry's service target this time is a large construction company. The owner owns multiple mixing station factories and has outstanding comprehensive strength. The customer selected local common river pebbles as processing materials, selected Liming Heavy Industry mobile jaw crusher and mobile cone crusher as host equipment, equipped with mobile vibrating screen and sand washing machine to produce high-quality aggregates of various specifications, mainly serving the Local infrastructure construction and real estate development.

Project Overview

Processing materials: river pebbles
Feeding particle size: ≤630mm
Discharge particle size: 5mm, 10mm, 20mm, 38mm
Capacity: 200-250T/H
Application areas: construction and building materials
Equipment configuration: NK75J mobile jaw crusher, NK300HS mobile cone crusher, NK200S mobile vibrating screen, XSD3016 sand washing machine

The forklift delivers river pebbles ≤630mm to the NK75J mobile jaw crusher for primary crushing. The small and medium-sized materials slip into the main belt conveyor through the lower hopper of the feeder grate, and enter the next stage of crushing together with the crushed materials from the jaw crusher.

The NK300HS mobile cone crusher with pre-screening function takes on the important task of secondary crushing. The materials crushed in the primary stage are transported by the belt conveyor to the HPT300 hydraulic cone crusher for secondary crushing. The discharged materials are pre-screened, and the large particle is returned to the cone crusher for re-crushing. Aggregate that meets the particle size requirements is transported to mobile vibrating screen.

After being cleaned and screened by the NK200S-3 screen washing vehicle, clean aggregates of different specifications are sent to the finished product pile respectively.

Based in China, go to the world! As a local equipment manufacturing enterprise in the Central Plains, Liming Heavy Industry always attaches great importance to polishing products and actively integrates into the competition in the international market. We look forward to participating in global market cooperation on a larger scale, in wider fields and at a higher level. In the future, Liming Heavy Industry will continue to delve into overseas markets and provide thousands of customers with excellent equipment and quality services!
