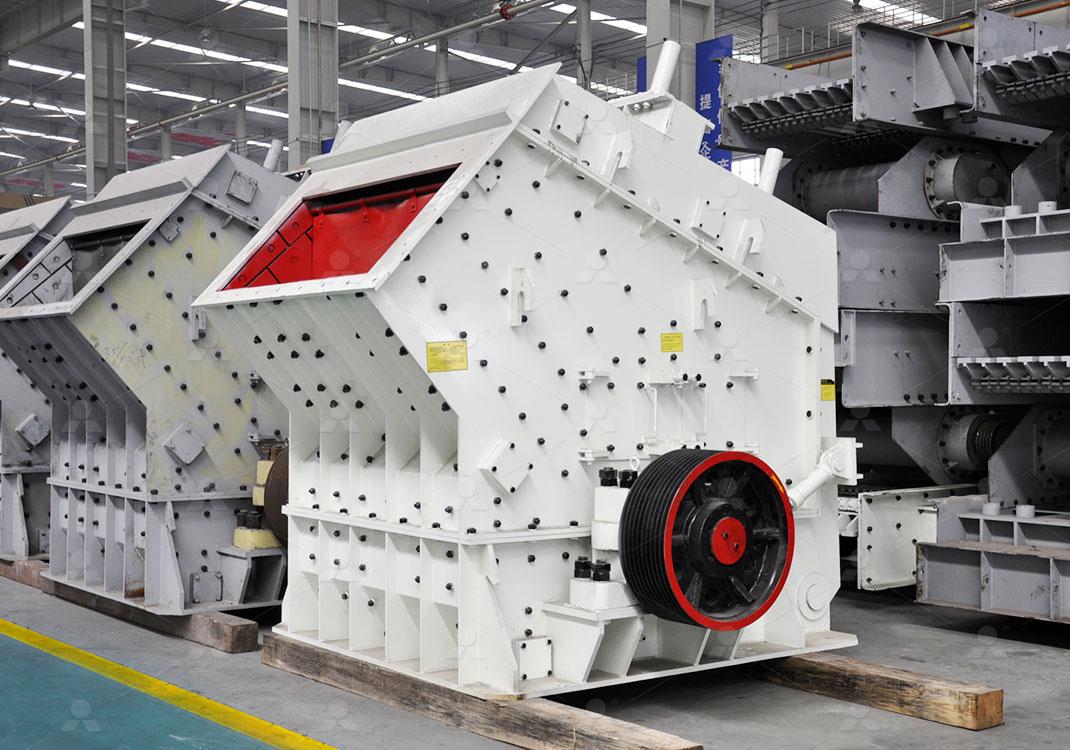

PF Impact crusher made in Liming Heavy Industry adopts quality steels and wear-resistant parts, which makes it superior and reliable. This machine is possess of rotor with large inertia, and its capacity is improved largely. Impact crusher is usually used as secondary crusher in the production line.

Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc. Ore crushing, railway, highway, energy, cement, chemical industry, construction, etc.

Wear-Resistant Plate Hammer Has Longer Service Life
The plate hammer of PF Impact Crusher is made from high chrome material and wear-resistant material through composite process, and undergoes strict heat treatment, so that the impact crusher possesses good mechanical shock resistance and thermal shock resistance.

Semi-Automatic Safety Design Reducing Risks of Overload and Shortening Downtime
PF Impact Crusher is equipped with self-weight safety device on the rear upper rack. After unbreakable materials (e.g. iron block) enter the crushing cavity, they can be discharged automatically, avoiding risks of overload and losses caused by downtime.

Top Mechanical Adjustment Device Can Freely Control Discharging Sizes
For different market requirements at different stages, SBM set a mechanical adjustment device at the top of PF Impact Crusher, and users can adjust the spacing between the impact rack and rotor through twisting the bolt of this device, so as to realize the adjustment of size of the discharged material.

Ratchet Wheel Flapping Device Makes Replacement of Spare Parts More Convenient
PF Impact Crusher is equipped with two identical sets of ratchet wheel flapping devices on both sides of the rack, which is composed of high-strength left and right spiral trapezoidal screw and ratchet wheel reversing mechanism. When the impact crusher needs to be stopped for parts replacement and other maintenance and checks, users can easily and stably open and close the rear upper cover of the impact crusher through this device.

Digitalized Processing, Higher Precision
There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

Sufficient Supply of Spare Parts, Worry-free Operation
SBM, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

Impact crusher crushes material by striking energy.when it works,the motor drives the rotor rotate at a high speed,on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar,they will be stroke by the blow bar and be thrown to the impact devices around the rotor.the high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size.the clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.
