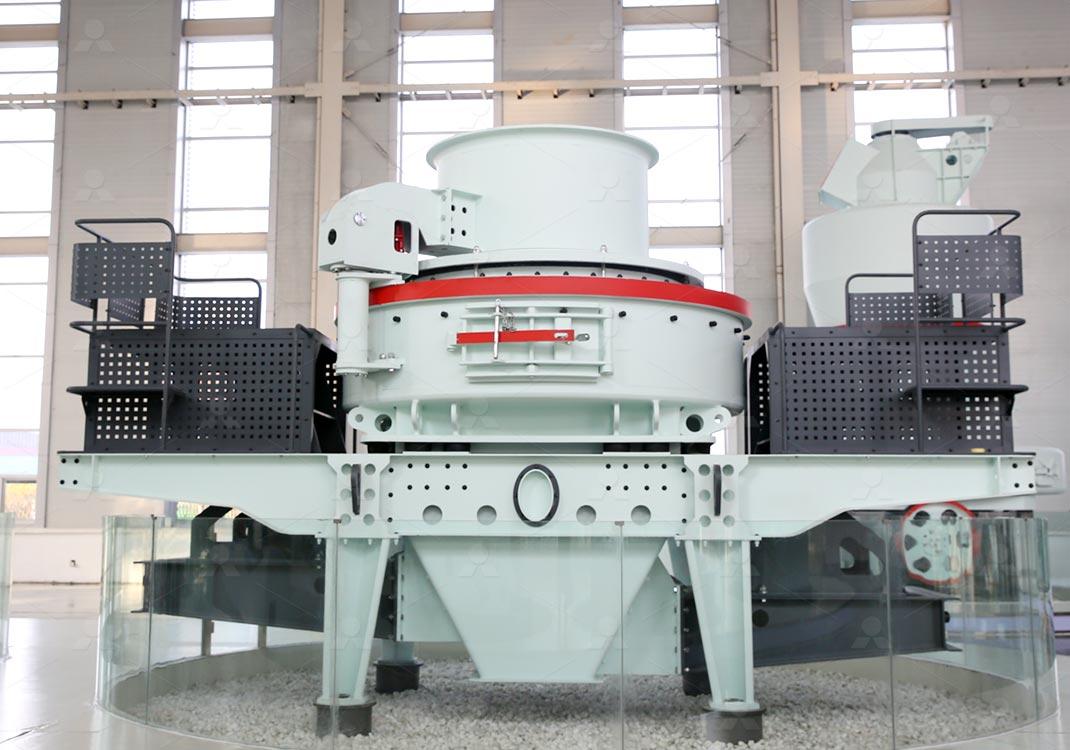

VSI5X Vertical Shaft Impact Crusher is popular in the market. This machine can satisfy customers’ requirements about efficiency and capacity, because its service life is increased by 48%, the costs are reduced by 30%, and the throughput of materials is improved by 30%.

Granite, quartz, basalt, pebble, limestone, dolomite, etc. Mechanism sand, bituminous concrete, metal mine, aggregates shaping

Optimized Impeller Enhances Efficiency By 30% And Reduces Wear By 40%
Through systematic mechanical analysis and verification, LIMING optimized the structures of impeller and vulnerable parts. Compared with the traditional sand makers, VSI5X Sand Maker obviously increases the material throughput and ratio of crushing, and enhances the working efficiency by 30%-60%. The wear costs of vulnerable parts reduce by more than 40%.

Hydraulic Device to Open the Cover Automatically Reduces Maintenance Costs
In consideration of the maintenance and part replacement during the production of the sand maker, LIMING introduced semi-automatic hydraulic system. By only pressing a button, users can open the top cover of the machine to carry out following operations. So, this system greatly saves labor costs and enhances the service efficiency.

Split-Type Structure, Extended Service Life of Spare Parts
Based on the actual situations of production, we found that some spare parts like the periphery guard board and impact block always wear terribly at some specific points. So, to avoid this phenomenon, LIMING adopts the split-type structure when designing quick-wear parts, which not only greatly extends service life of quick-wear parts, but also reduces their using costs a lot.

Brand New Feed Mode
In consideration that customers may have two production demands (i.e. sand making and shaping) which require the switch between central feeding and fall feeding, LIMING made a brand new improved design on the material distributing tray so that users can easily switch the feed mode, shortening downtime for adjustments.

Digitalized Processing, Higher Precision
There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

Sufficient Supply of Spare Parts, Worry-free Operation
LIMING, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

When entering into impeller, the raw material can be crushed directly by hitting impact plate after it is accelerated and threw out. The raw material can also be divided into two parts by material-dividing plate. One falls down from all around. The other enters into impeller and is accelerated, threw out and collides with the falling material and hit, rebound with impact plate. The circulation hits repeats. As the crushing is moving forward, small particle materials will gradually form a material bed around the impact plate which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards though outlet finally.
