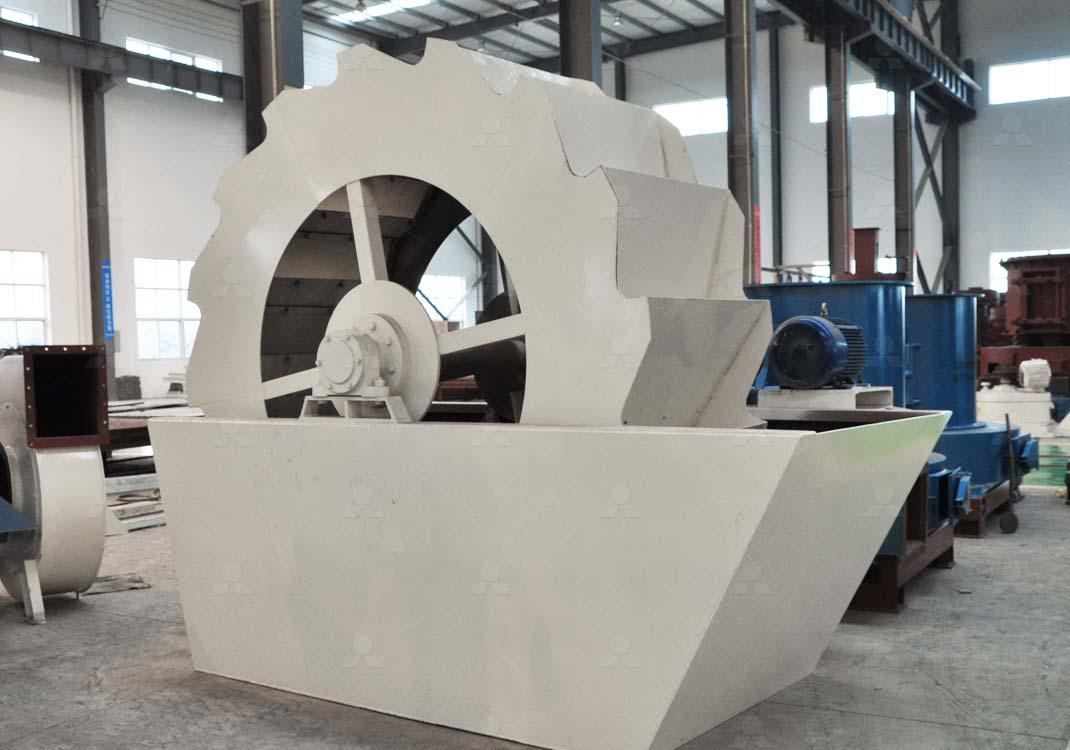

Sand Washer is equipment used for cleaning materials and separating dust, and it usually integrates cleaning, dehydration and classification together. This machine can be used to metallurgy, building materials and hydropower, etc. industries, which is more suitable for building sand.

Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore and so on. Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.

Large Capacity & Low Production Cost
The capacity of a XSD Sand Washer can reach 180t/h, which satisfies most sand washing requirements. The sand-washer is of small investment and low power consumption. So the production cost can be saved a lot.

Simple Structure & Low Failure Rate
The XSD Sand Washer is of simple and reasonable structure. The impeller drive bearing device is separated from the water and materials exposed to water. The new sealing structure and totally enclosed oil bath-type transmission device greatly avoid the occurrence of bearing damages caused by water soaking, sand and pollutants.

Multiple Functions---Washing, Dewatering And Grading
The XSD Sand Washer possesses washing, dewatering and grading functions. When working, the aggregate will grind mutually under the driving of impeller to remove the sundries covering on the aggregate surfaces and destroy the water vapor layer covering the sand. The XSD Sand Washer can also complete the washing and purifying functions under the effect of strong water flow.

Long Service Life & No Pollution
XSD Sand Maker has good structural layout and effective sealing design, allowing it to operate for a long term without maintenance (i.e., it is durable.). The water consumption is low and the operating noise is small which meet the national environmental protection standards.

Digitized Machining, Higher Precision
LIMING has dozens of CNC (Computer numerical control) machine production lines. From steel plates' cutting, bending, planning to final painting, all steps can be controlled numerically. High processing precision assures that key parts have higher standards.

Sufficient Spare Part Supply, Worriless Operation
LIMING, as a prominent enterprise integrating machine production and sales in mining machinery industry, is dedicated to be responsible for every product. Meanwhile, LIMING always makes every effort to offer customers comprehensive technical services and sufficient spare parts to let them be free from worries about project operation.

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
